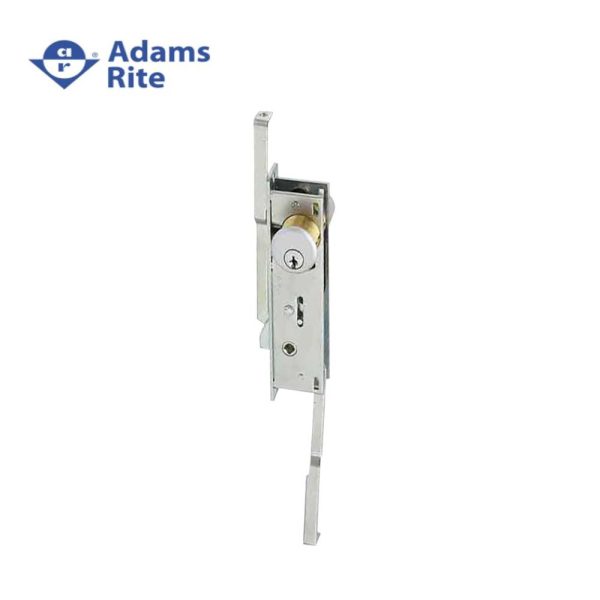

Adams Rite – 1875 – Two Point Deadlock – 603 (Zinc Plated)

The 1870 Cylinder-Operated Flushbolt is designed for aluminum stile doors.

Feature:

• Cylinder Backset: 31 32” or 1-1 8” only.
• Cylinder Height: Standard length (cylinder center to retracted bolt tip) is 12” with ± 1-1 4” adjustment. Other lengths available by special order.
• Case: Measures 1” x 6” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
• Bolt: Hexagonal 3 8” flat to flat, with 11 16” throw. Made of stainless steel.
• Strike: 1 2” diameter hole in metal threshold or header is suitable. For wood thresholds, 4005 strike is available separately.
• Faceplate: Measures 1 x 6-7 8 .
• Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Standard Package: Basic lock mechanism boxed with actuator arm attached, rod bolt assembly unattached. Stainless steel bolt guide, mounting screws, and installation instructions included. Cylinders available separately. Shipping weight: 1-1 4 lbs.

• Product Specifications:

  Vendor		Assa Abloy
  Manufacturer		Adams Rite
  SKU		1875-603-IB
  UID		ADA1001875603IB
  Installation		Commercial
  Unit of Measure		Each
  Product Type		Aluminum Door Lock Parts and Accessories
