Description

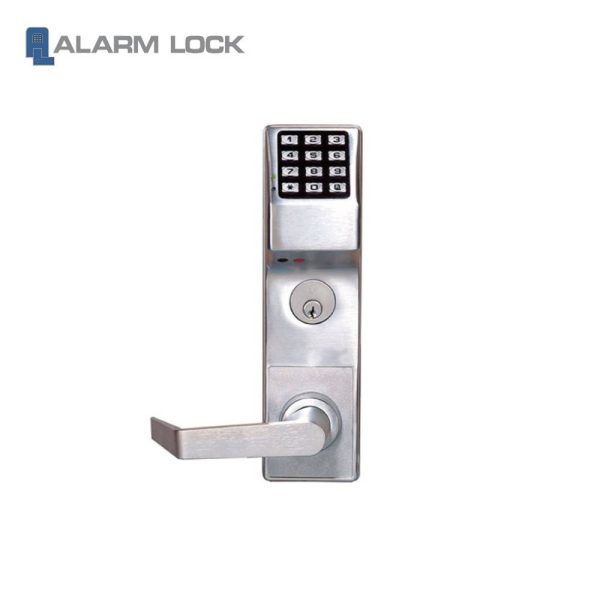

Alarm Lock – DL3500CRR-26D – Trilogy Classroom Mortise Lock With High Capacity Audit Trail – Grade 1 – Satin Chrome Finish

Trilogy high security mortise locks with and without prox DL3500 Series Mortise Locks 300 User codes.

• 300 User codes: Master, manager, supervisor & basic users
• Fingertip or Windows PC-programmable
• Real time clock enables up to 500 scheduled events and holiday schedules
• 40,000 Event audit trail provides a printed time date- stamped log of all electronic activity
• Long-life battery pak for 80,000 cycles, typical and low-battery alert
• Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)
• 1 3 8” (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
• 40,000 event audit trail log
• 500 scheduled events, e.g., lock or unlock
• PC programming reporting
• Quick passage mode (without being in program mode)
• Program data transferred to lock via AL-PCI2 or AL-DTMIII
• 5AA battery-pak operated; 75,000 cycles, typical
• 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
• Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)

• Product Specifications:

  Manufacturer		Alarm Lock
  SKU		DL3500CRR US26D
  UID		ALA100DL3500CRRUS26D
  Grade		Grade 1
  Unit of Measure		Each
  Base Material		Brass or Bronze

  Technical Specifications:

  Series Name		Trilogy
  Lock Platform		Mortise Latch
  Reader Technology		Keypad Only
  Keypad Type		Electronic
  # Users		300
  Cylinder Type		Mortise Cylinder
  Door Thickness		1-3 8 In. to 1-7 8 In.
  Strike Type		Mortise
  Power		Battery Pack
  Programmer		Optional
  Software		Optional
  Product Type		Mortise Locks with Keypad Trim
