Description

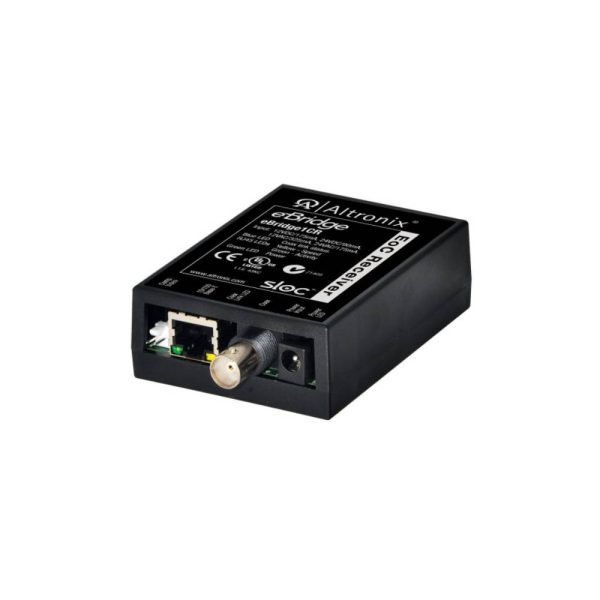

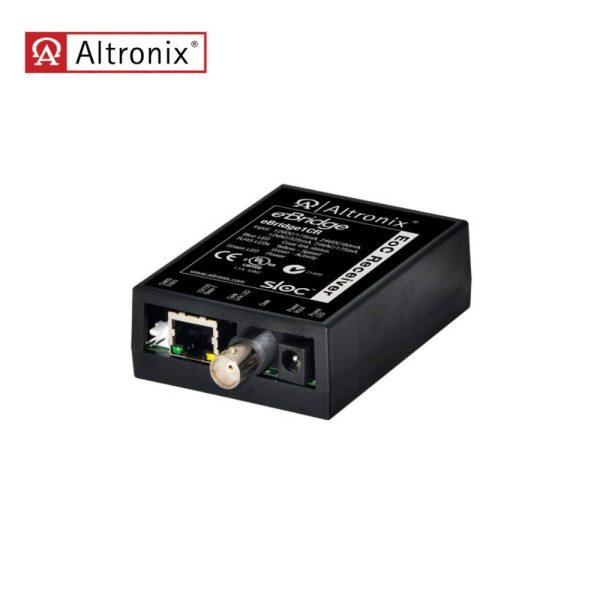

Altronix – EBRIDGE-1CR – IP Over Coax Receiver Incorporates Security Link Over Coax Technology

The The eBridge1CR – IP over receiver is designed for use with eBridge1CT to enable fast 10 100Base-T Ethernet digital communication over coax cable. This plug and play unit facilitates system upgrades from analog to IP cameras devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition data transmission is extended up to 610m (over five times the 100m Ethernet maximum length), eliminating the need for repeaters. eBridge units will transmit Composite Video Signal with Ethernet data simultaneously.

Features:

• 12VDC to 24VDC Class 2 power supply (polarity not observed) or 16VAC to 24VAC Class 2 plug-in transformer.
• 12VDC 275mA, 24VDC 110mA, 16VAC 375mA, 24VAC 200mA.
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair Cat-5 or better structured cable.
• Distance: up to 100m.
• Speed: 10 100BaseT, half full duplex, auto negotiation.
• Throughput is rated to pass 25Mbps of data at distances up to 500m. With proper headend equipment multiple Megapixel cameras can be used.
• Blue LED – Coax link connection.
• Blue LED – Coax link connection.
• Yellow and Green LED (RJ45) IP Link status, 10 100Base-T active.
• Green LED – Power.

• Product Specifications:

  Vendor		Altronix Corporation
  Manufacturer		Altronix
  SKU		EBRIDGE1CR
  UID		ALT100EBRIDGE1CR
  Installation		Commercial
  Unit of Measure		Each
  Product Type		Power Over Ethernet (POE) Adaptors

  Download:

  • Installation Instructions

  • Additional information

  Title	Default Title
