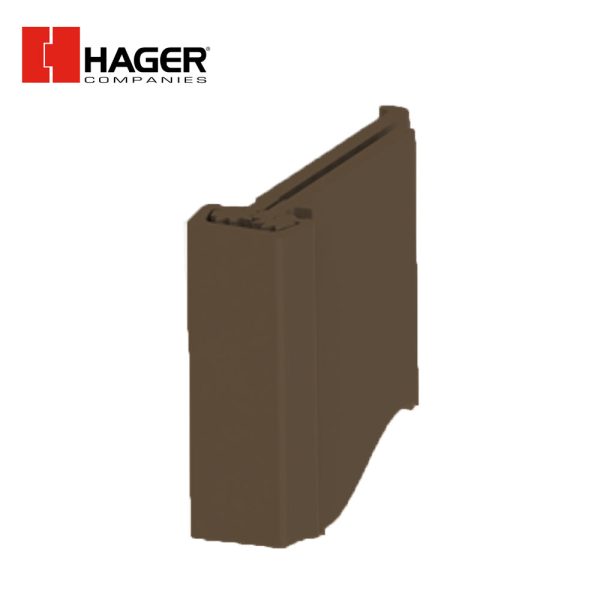

HAGER – 780-124HD – Heavy Duty Concealed Leaf Continuous Geared Hinge

HAGER hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.

• ANSI BHMA A156.26 C
• Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
• Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at www.HAGERco.com. HAGER warrants US10B finish only over brass or bronze base material. If steel base material is necessary, HAGER recommends US10A lacquer finish.

• Product Specifications:

  Applications

  • For deep inset or flush-with-frame (when using rabbeted frames) applications, center hung doors, heavy cabinets
  • For square edged doors on hinge side

  • Features

    • Heavy duty for high frequency doors – for wood or metal doors 1-3 4 (44 mm) thick
    • Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (specify LL )
    • Door edge protection lip
    • Frame alignment rib for proper hinge and door location

    • Finishes:

      • DKB – Satin Aluminum Clear Anodized (628)
      • DBA – Dark Bronze Anodized Aluminum (313)
      • BLK – Black Etch Anodize

      • Special Features

        • Frame alignment rib for proper hinge and door location
        • Door edge protection lip

        • Fire Rating: Up to 3 hr. metal and 90 min. wood composite (with studs)

          Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

          Door Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

          Length: 79 , 83 , 85 , 95 , 119

          Length Options: Standard and Custom

          Material: Aluminum 6063-T6

          Clearance: 5 16 (8 mm) hinge side

          Notes:

          • EPD: Roton Continuous Hinges Environmental Product Declaration
          • When opened 90° door projects 13 16 past a standard 5 8 stop of jamb.
