Description

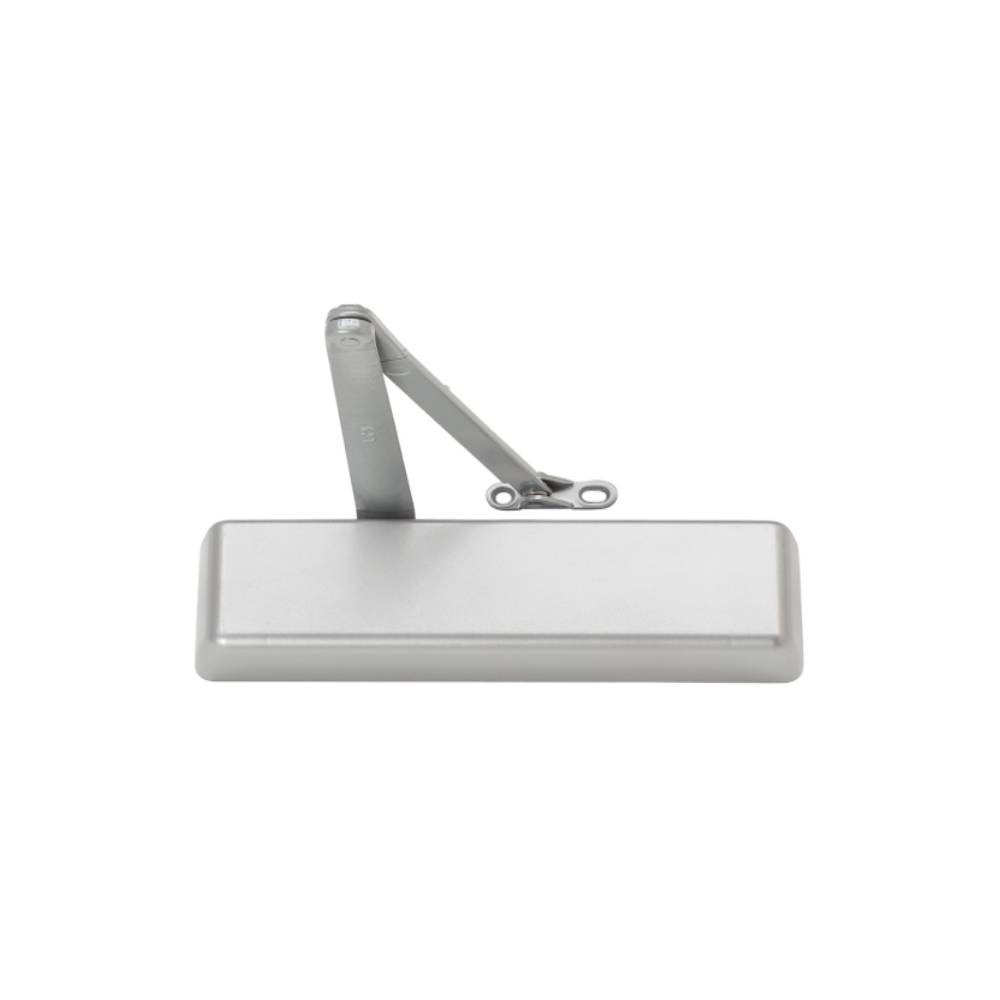

LCN – 4016 – Regular Arm Door Closer – Grade 1 – Optional Handed – 689 (Aluminum Painted Finish)

The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.

Feature:

• Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
• Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts parallel arm, specify right or left swinging door
• 4111 cylinder meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4110 Series is UL and cUL listed for self-closing doors without holdopen
• Tested and certified under ANSI Standard A156.4, grade one

• Product Specifications:

  Vendor		Allegion
  Manufacturer		LCN
  SKU		4016-REG LH 689 4016-REG RH 689
  UID		LCN1004016REGLHAL LCN1004016REGRHAL
  Finish		689
  Grade		Grade 1
  Installation		Commercial
  Unit of Measure		Each
  Base Material		VARIES
  BAA Qualified		Yes

  Technical Specifications:

  Type		Surface
  Technology		Hydraulic
  Mounting Location		Pull Side
  Mounting Style		Regular
  Arm Type		Regular Arm
  Hand		Left Hand Right Hand
  Degree Swing		180 Deg.
  Cover		Full Plastic
  Cold Weather Fluid		Yes
  Product Type		Surface Closers

  Additional information

  Handed	Left Hand, Right Hand
