Description

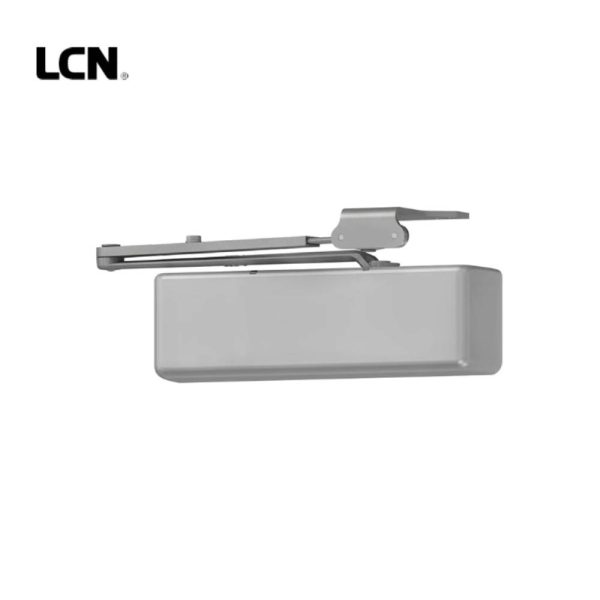

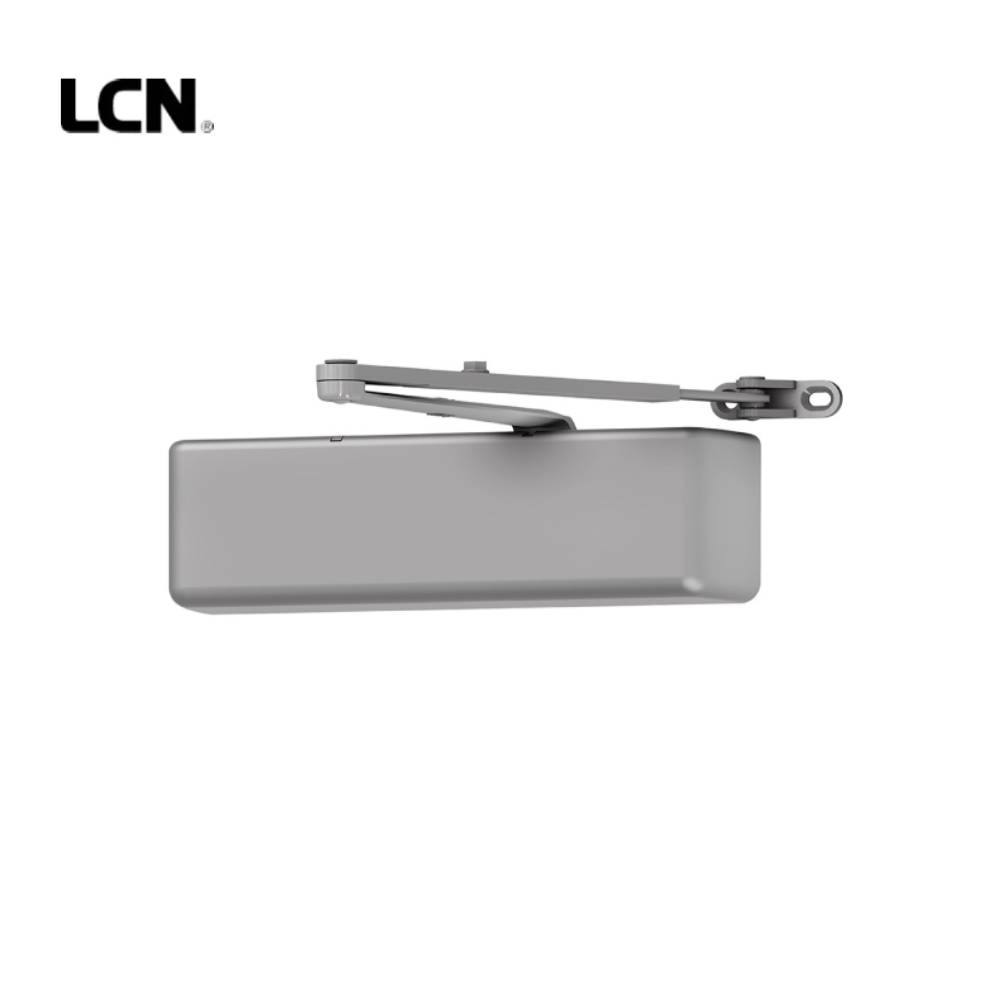

LCN – 4040XP – Surface Door Closer – Plastic Cover – Adjustable Size 1-6 – Grade 1 – Optional Arm Function – Optional Color

The 4040XP is LCN’s most durable and flexible heavy duty surface mounted closer, designed for institutional and other demanding high traffic applications. The 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. We built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.

The patented green dial on the 4040XP makes spring adjustments fast, easy and foolproof. The all-weather fluid reduces maintenance and ensures consistent performance through every season. High-traffic doors call for heavy-duty closers – closers that won t let you down no matter how many people go through the door or how hard they kick, push or slam against it.

Feature:

• Cast iron cylinder with full-complement bearing
• 3 4 diameter piston
• Double-heat treated steel pinion journal
• All-weather Liquid X fluid
• LCN patented Green Dial spring force indicator
• Universal non-handed
• Peel-n-stick template and snap-on cover
• Adjustable spring sizes 1-6

• Product Specifications:

  Vendor		Allegion
  Manufacturer		LCN
  SKU		4040XP-Rw PA 695 4040XP-RW PA 689 4041DEL-REG 689 4040XP-Hw PA 689
  UID		LCN1004040XPRWPADKBRZ LCN1004040XPRWPAAL LCN1004040XPREGALDEL LCN1004040XPHWPAAL
  Finish		695 689
  Grade		Grade 1
  Installation		Commercial
  Origin		USA
  Unit of Measure		Each
  Application		Regular Arm Delayed Action Hold Open Arm
  Base Material		Varies
  UL Listing Type		UL 10C
  ANSI Number		A156.4
  BAA Qualified		Yes
  Fire Rated		3 Hours {A}
  ADA Compliance		Yes

  Technical Specifications:

  Type		Surface
  Technology		Hydraulic
  Mounting Location		Push or Pull Side
  Mounting Style		Tri Mount
  Closer Size		1 to 6
  Arm Type		Regular Arm Delayed Action Hold Open Arm
  Hand		Non-Handed
  Degree Swing		120 Deg.
  Back Check		Adjustable
  Cover		Plastic
  Screw Type		Self Tapping
  Cold Weather Fluid		Yes
  Product Type		Surface Closers

  Additional information

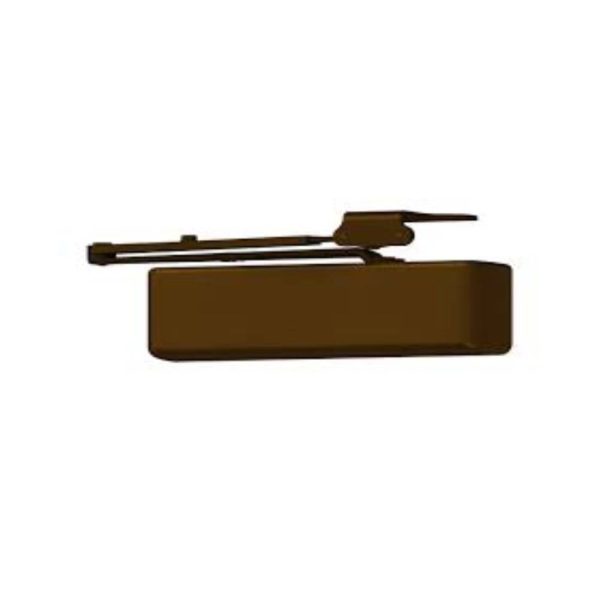

  Color	695 (Dark Bronze Painted Finish), 689 (Aluminum Painted Finish)
  Function	Regular Arm, Hold Open Arm
