Description

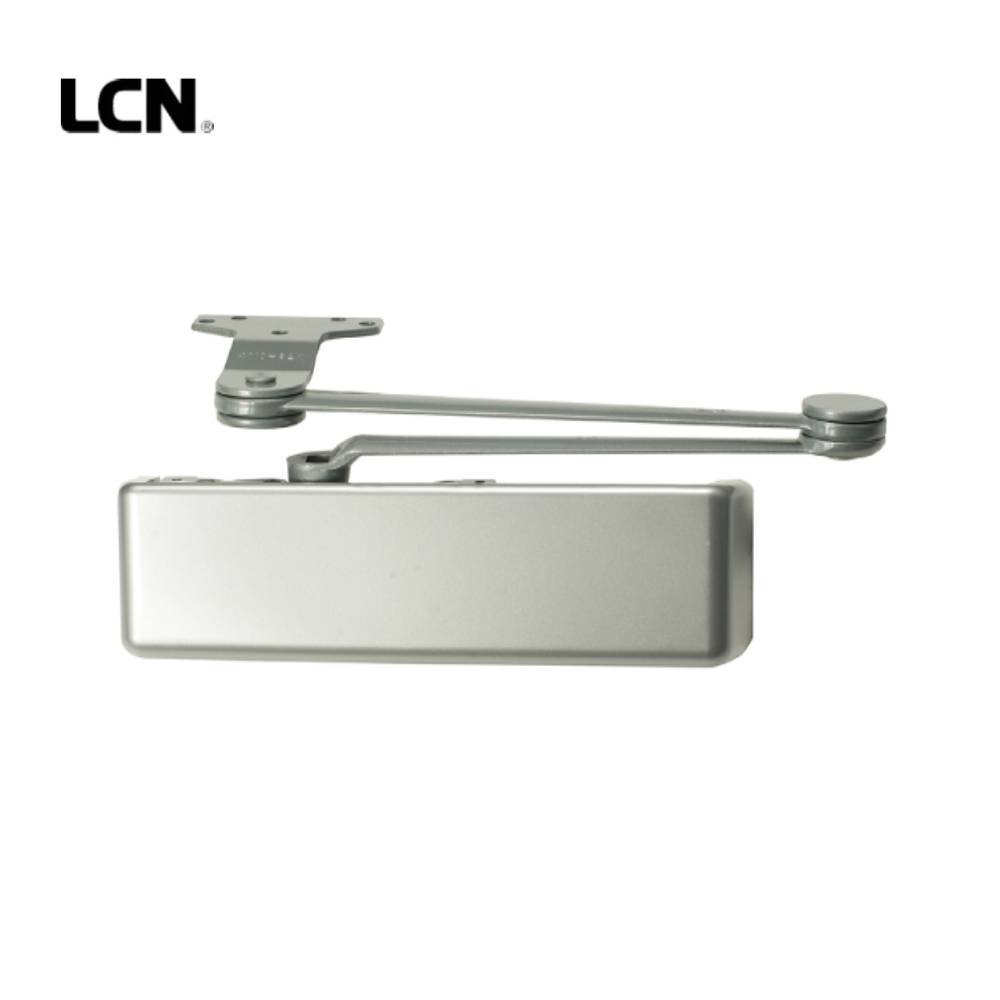

LCN – 4111-EDA – Surface Door Closer – Extra Duty Arm with 62G Shoe – Plastic Cover – Size 1-5 – Grade 1 – Optional Handed – 689 (Aluminum Painted Finish)

The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.

Feature:

• Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
• Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts parallel arm, specify right or left swinging door
• 4111 cylinder meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4110 Series is UL and cUL listed for self-closing doors without holdopen
• Tested and certified under ANSI Standard A156.4, grade one

• Product Specifications:

  Vendor		Allegion
  Manufacturer		LCN
  SKU		4111-EDAw 62G RH 689 4111-EDAW 62G LH 689
  UID		LCN1004111EDAW62GRHAL LCN1004111EDAW62GLHAL
  Finish		689
  Grade		Grade 1
  Installation		Commercial
  Unit of Measure		Each
  UL Listing Type		UL Listed
  ANSI Number		A156.4
  BAA Qualified		Yes

  Technical Specifications:

  Type		Surface
  Technology		Hydraulic
  Mounting Location		Push Side
  Mounting Style		Parallel Arm
  Closer Size		1 to 5
  Arm Type		Extra Duty Arm
  Hand		Right-Handed Left-Handed
  Degree Swing		180 Deg.
  Back Check		75 Deg.
  Cover		Full Plastic
  Reveal Size		Less Than 2-3 4
  Cold Weather Fluid		Yes
  Product Type		Surface Closers

  Additional information

  Handed	Right Hand, Left Hand
