Description

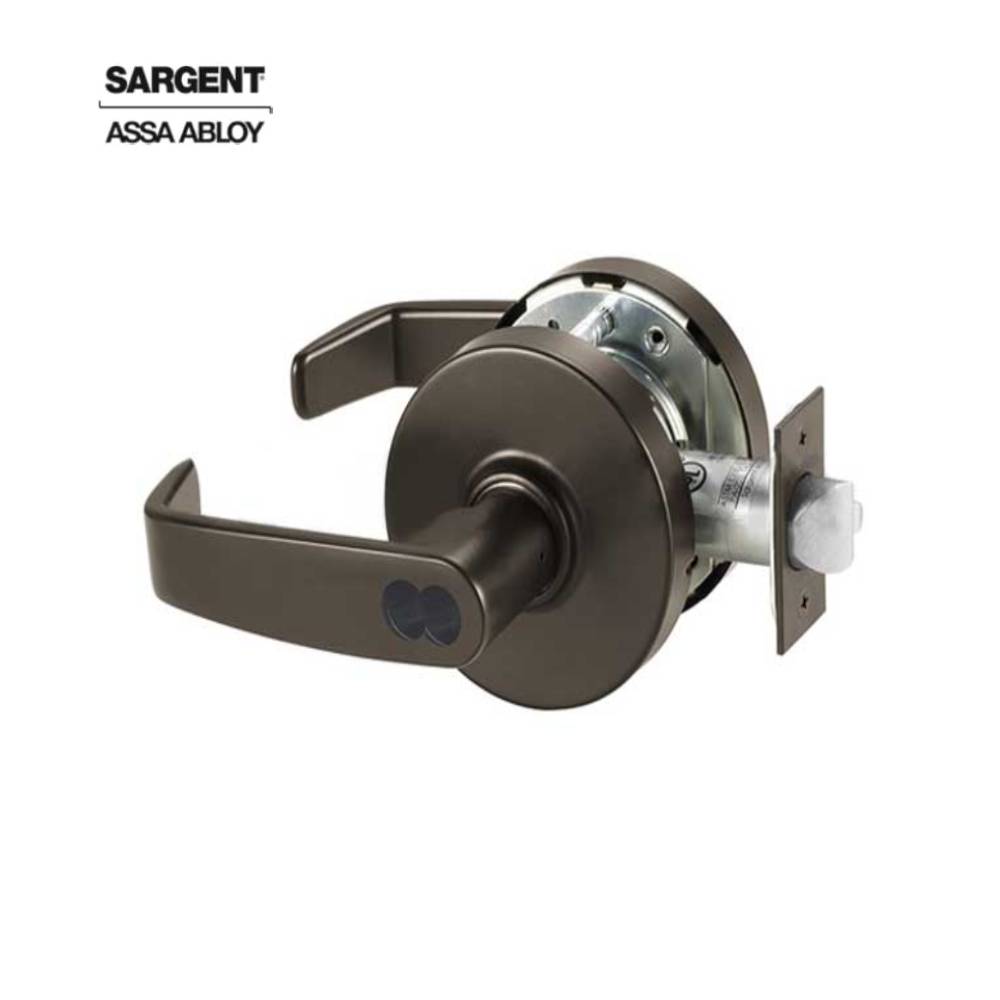

Sargent – 2870-10G05 – Entrance Cylindrical Lock with 2-3 4 Backset and 4-7 8 ANSI Strike – L Lever – SFIC Prep – Grade 1 – Optional Color

The 2870-10G05 is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.

Feature:

• ANSI BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
• UL-cUL listed for 3 hour fire doors and windstorm applications
• Freewheeling trim optional
• Available in 21 different functions, including classroom security and electromechanical options for access control applications
• Offered in 12 architectural grade finishes to match any decor
• Integrates into most existing facility key systems including Sargent security systems (Degree, Signature, KESO, and XC; also accept Schlage and Medeco LFIC)
• 6 lever designs, 2 rose designs offered
• Applications: Offices, Schools Universities, Hospitals, Manufacturing facilities

• Product Specifications:

  Vendor		ASSA ABLOY
  Manufacturer		Sargent
  SKU		2870-10G05 LL BSP 2870-10G05 LL 26D 2870-10G05 LL 10BE
  UID		SAR287010G05LLBSP SAR100287010G05LL26D SAR287010G05LL10BE
  Grade		Grade 1
  Installation		Commercial
  Origin		USA
  Unit of Measure		Each
  Application		Heavy Duty
  Fire Rated		3 Hours {A}
  Finish		BSP US26D US10BE

  Technical Specifications:

  Function		05-Entrance or Office Lock
  ANSI Function		F81 – Office
  Lever Knob Design		L Lever
  Rose Escutcheon Design		L Rose
  Rose Escutcheon Dimensions		3-1 2
  Cylinder Type		SFIC Prep Disposable Core
  Handing		Not Handed
  Door Thickness		1-3 4 – 2
  Std. Latch Number		44491
  Std. Latch Type		Dead Latch (Guarded)
  Std. Latch Backset Dim		2-3 4
  Latch Bore Diameter		1
  Lock Face Size		2-1 4 x 1-1 8
  Bolt Projection		1 2
  Bore Hole Diameter		2-1 8
  Std. Strike Number		808
  Std. Strike Type		ANSI Strike
  Std. Strike Height		4-7 8
  Std. Strike Width		1-1 4
  Dust Box		None
  Screws		Combination
  Product Type		Cylindrical Lock

  Additional information

  Color	BSP (Black Suede Powder Coat), US26D (Satin Chrome), US10BE (Dark Oxidized Bronze)
