Description

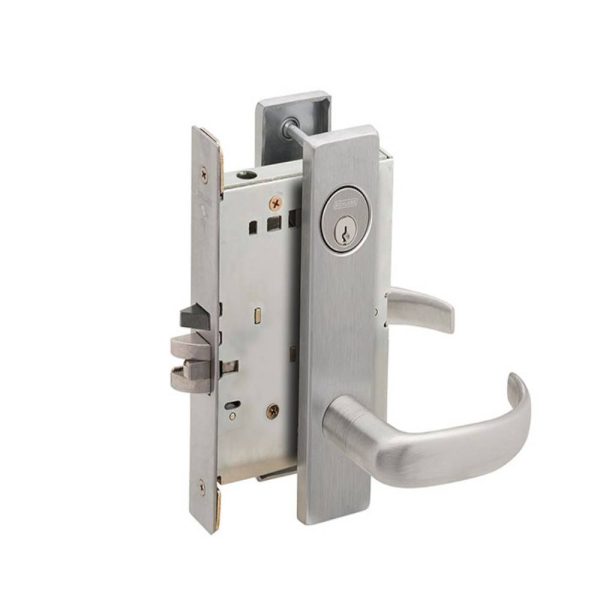

Schlage – L9080P – Storeroom Mortise Lock with 2-3 4 Backset and 4-7 8 ANSI Strike – 17 Lever – L Escutcheon – Grade 1 – 626 (Satin Chrome Finish)

The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application.

Product Specifications:

Vendor		Allegion
Manufacturer		Schlage
SKU		L9080P 17L 626
UID		SCH100L9080P17L626
Grade		Grade 1
Installation		Commercial
Origin		Mexico
Unit of Measure		Each
UL Listing Type		UL Listed
ANSI Number		A156.13-2017 Series 1000
Fire Rated		3 Hours {A}

Technical Specifications:

Function		9080-Storeroom
Function Family		Storeroom
ANSI Function		F07 – Storeroom Exit
Lever Knob Design		17 Lever
Lever Knob Design Family		Curved Return Lever
Rose Escutcheon Design		L Escutcheon
Rose Escutcheon Dimensions		8 x 1-3 4 x 7 16
Cylinder Type		Conventional Cylinder
Num Pins		6
Std. Keyway		S123
Keying		Keyed Different
Key(s)		Cut
Num of Keys		2
Cylinder Length		1-1 8
Cam Type		Schlage L
Cam Number		L583-254
Handing		Field Reversible
Door Thickness		1-3 4
Std. Latch Type		Dead Latch (Guarded)
Std. Latch Backset Dim		2-3 4
Lock Face Size		8 x 1-1 4
Bolt Projection		3 4 Latch
Std. Strike Number		10-072 1316 626
Std. Strike Type		ANSI Strike
Std. Strike Height		4-7 8
Std. Strike Width		1-3 16
Dust Box		Plastic
Screws		Combination
Product Type		Mortise Lock
