Description

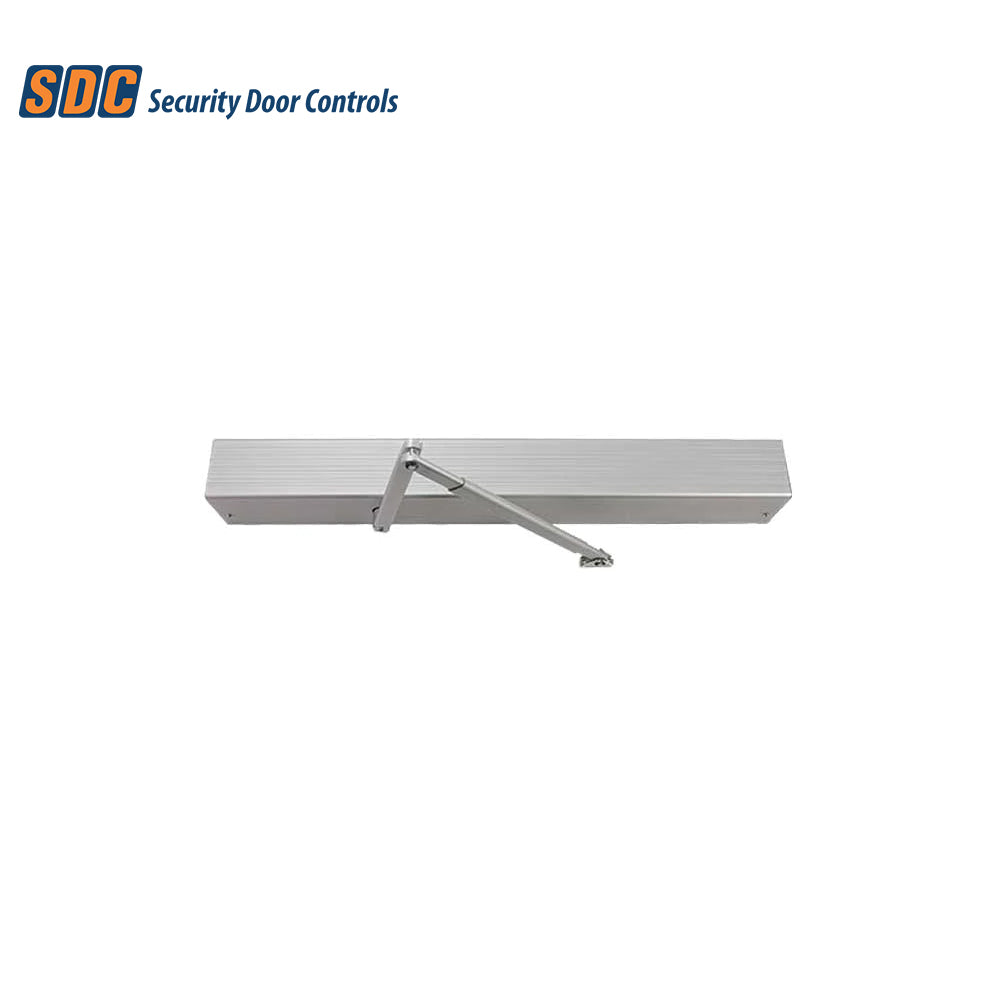

SDC – AUTOS136V – Low Energy Swing Door Operator with Push Side Top Jamb Mount – 36 Opening – Satin Aluminum Clear Anodized Finish

AUTO Series Low Energy Swing Door Operators. Low Energy Swing Door Operators providing the newest and most convenient features to gain safe access for ADA applications. SDC’s Operator is built with a state-of-the-art microprocessor-based unit that is self-tuning and self-learning while offering non- handed operation, full-mechanical stops and a variety of interface options for sensors, push-plates, fire alarms and electrified locks.

Features:

• Single Button, Self-Tuning Setup
• Exremely Quiet Operation
• Momentary Back Pressure Relief
• Obstruction Detection
• Power Close Option
• Hold-Open Timer
• External Function Switches
• Built-in 1 Amp Power Supply
• On-board Lock Sequencing
• Preset Dip Switches for Alternative Functions
• Customizable Programming for System Design
• USB Port to Easily Upload Customized Programming
• Non-Handed
• Push or Pull Compatible
• Spindles Included
• High Traffic Use

• Product Specifications:

  Manufacturer		SDC
  SKU		AUTOS136V
  UID		SDCAUTOS136V
  Installation		Commercial
  Origin		USA
  Unit of Measure		Each
  UL Listing Type		UL324, UL10C
  ANSI Number		A146.19
  BAA Qualified		Yes
  Fire Rated		3 Hours {A}
  ADA Compliance		Yes

  Technical Specifications:

  Type		Surface
  Technology		Electromechanical
  Mounting Location		Push Side
  Mounting Style		Top Jamb
  Hold Open		Yes
  Hold Open Type		Electric
  Closer Size		Non-Sized
  Arm Type		Double Lever Arm Regular
  Hand		Non-Handed
  Degree Swing		130 Deg.
  Stop		Dead Stop
  Back Check		Adjustable
  Spindle Size		34mm
  Cover		Full
  Screw Type		Machine and Wood
  Through Bolts		Yes
  Door Size		36
  Door Weight		438
  Reveal Size		8 Max
  Voltage		24V
  Aux Power		1A, 100W
  Relay		NO NC
  Physically Handicapped		Yes
  Product Type		Door Operators
