Description

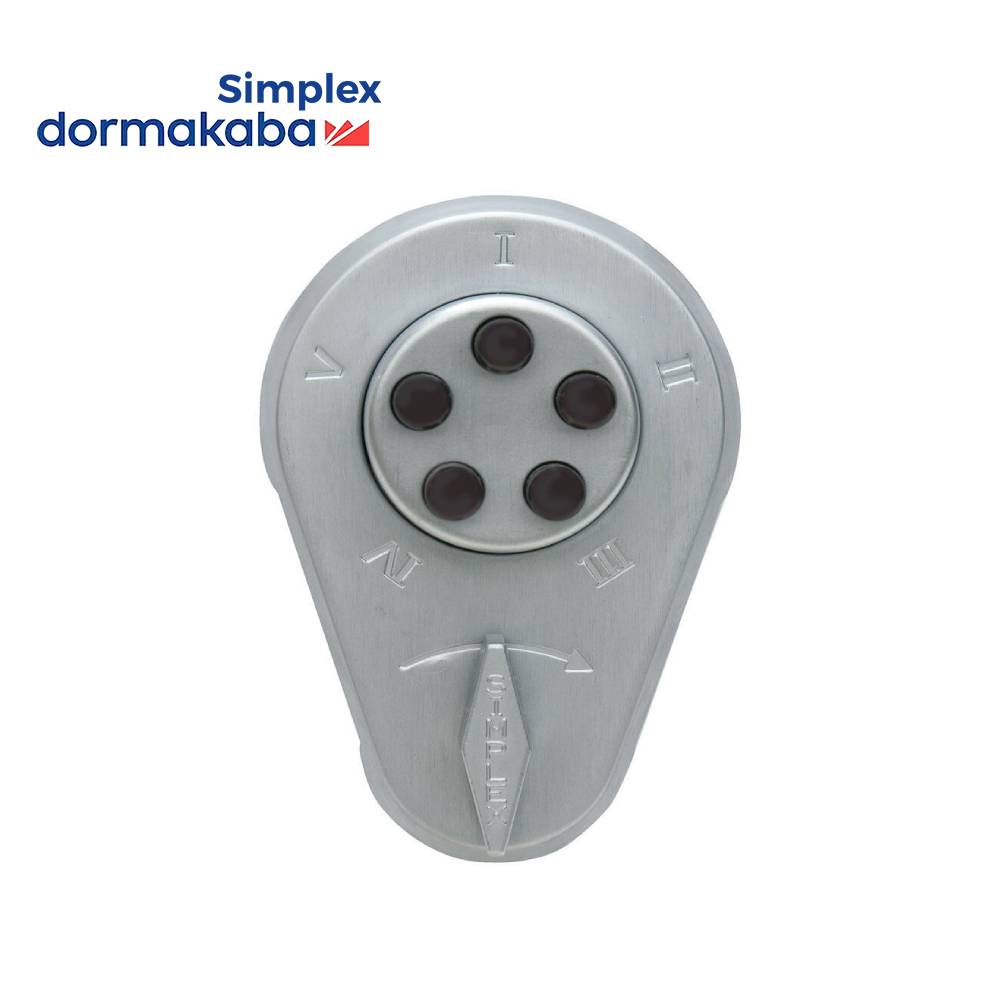

Simplex – 9040000 – Mechanical Pushbutton Combination Deadbolt Lock – Optional Door Thickness – 26D (Satin Chrome)

Simplex 900 Series Deadbolt models must be manually relocked.

Feature:

• Construction: All metal cast front housing, force-resistant, clutch-protected thumbturn, metal exterior trim plate

• Numeric Keypad: Vandal resistant, solid metal pushbuttons

• Handing: Field reversible latch; invert the lock for right-hand doors; roman numerals are easily read in either orientation

• Backset: 2 9⁄16 (65 mm) for outswing doors, 2½ (64 mm) for inswing doors

• Latch: 1 (25 mm) deadbolt; ⅝ deadlocking spring latch

• Strike: Includes strike plate for outswing doors, cast box strike for inswing doors; metal door frames require the optional surface mortise box strike or use of an adapter kit

• Durability: Weather resistant

• Product Specifications:

  Vendor		DormaKaba
  Manufacturer		DormaKaba
  SKU		9040000-26D-41
  UID		SIM100904000026D41
  Door Thickness		1-3 4 to 2-1 8 1-3 8 to 1-1 2
  Installation		Commercial
  Unit of Measure		Each
  Base Material		Brass or Bronze

  Technical Specifications:

  Series Name		Simplex
  Lock Platform		Deadbolt Lock
  Product Type		Tubular Deadbolts and Deadlatches

  Additional information

  Door Thickness	1-3/4 to 2-1/8 Inch, 1-3/8 to 1-1/2 Inch
