Description

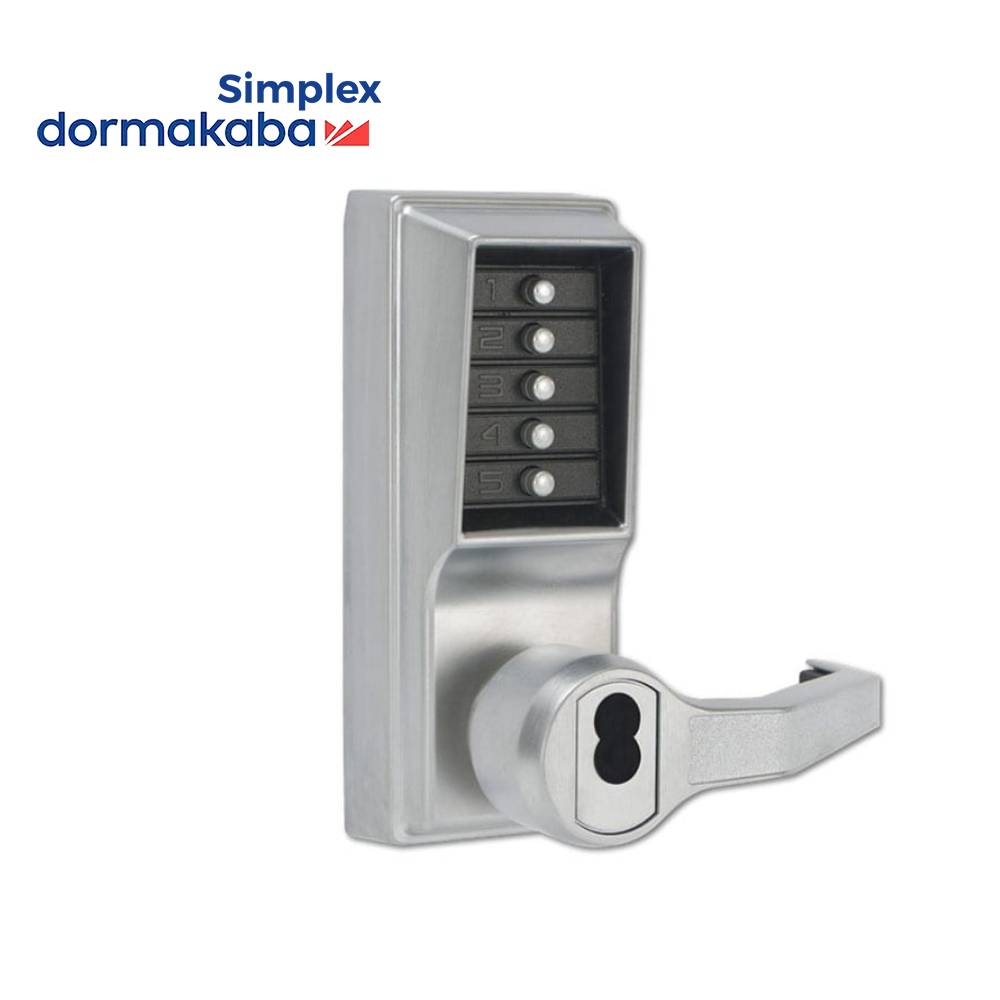

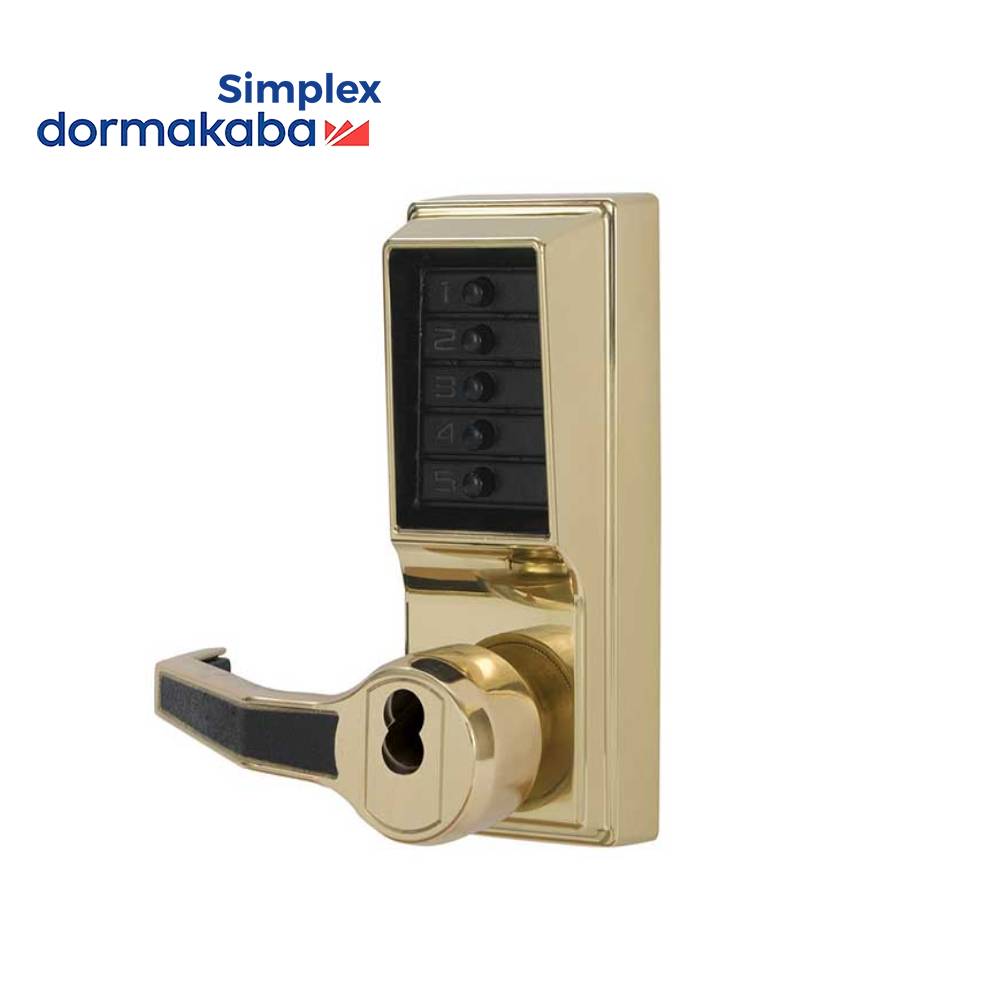

Simplex – LL1021 – Mechanical Pushbutton Cylindrical Lever Lock with Key Override – 2-3 4″ Backset – Optional Handed – Optional Keyway – Optional Color

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex L1000 Series provides exterior access by combination while allowing free egress. This mechanical lock, with lever option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

L1021: Combination Entry. Key Override (core not included). Interior Combination Change.

Feature:

• A cost-effective access control solution
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
• Vandal-resistant, solid metal pushbuttons
• Factory-handed; not field reversible
• 5″ Minimum stile recommended
• D.O.D. Compliant 5220.22M for supplemental access control
• 3-hour UL ULC fire rating for “A” labeled doors
• Weather resistant

• Key Override Options:

  • B – Prepped for 6 or 7 pin SFIC (less core)
  • C – Prepped for Corbin Russwin 6-Pin LFIC (less core)
  • M – Prepped for Medeco Yale ASSA Abloy LFIC (less core)
  • R – Prepped for Sargent LFIC (less core)
  • S – Prepped for Schlage FSIC (less core)

  • Specifications:

    Brand		DormaKaba
    Lock Function		Combination Entry Function with Key Override
    Backset		2-3 4
    Strike		4-7 8” x 1-1 4” ASA ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
    ADA Compliance		Meets ADA requirements – A117.1 Accessibility Code
    Usage		Heavy Duty
    Finish		US5 (609) Antique Brass US3 (605) Bright Brass US26 (625) Bright Chrome US26D (626) Satin Chrome
    Key Override		L1021B – Prepped for 6 or 7-pin SFIC, L1021C – Prepped for Corbin Russwin 6-Pin LFIC, L1021M – Prepped for Medeco Yale ASSA Abloy LFIC, L1021R – Prepped for Sargent LFIC, L1021S – Prepped for Schlage FSIC
    Handing		Handed
    Latch		1 2 throw – 1-1 8 x 2-1 4 face
    Fire Rating		UL and cUL Listed – up to 3 Hours
    Door Thickness		1-3 4

    Additional information

    Color	26D (Satin Chrome), 605 (Bright Brass), 609 (Antique Brass), 625 (Bright Chrome)
    Handed	Left Hand / Left Hand Reverse, Right Hand / Right Hand Reverse
    Keyway	B – 6/7 pin SFIC (less core), C – Corbin Russwin 6-Pin LFIC (less core), M – Medeco/Yale/ASSA/Abloy LFIC (less core), R – Sargent LFIC (less core), S – Schlage FSIC (less core)
