Description

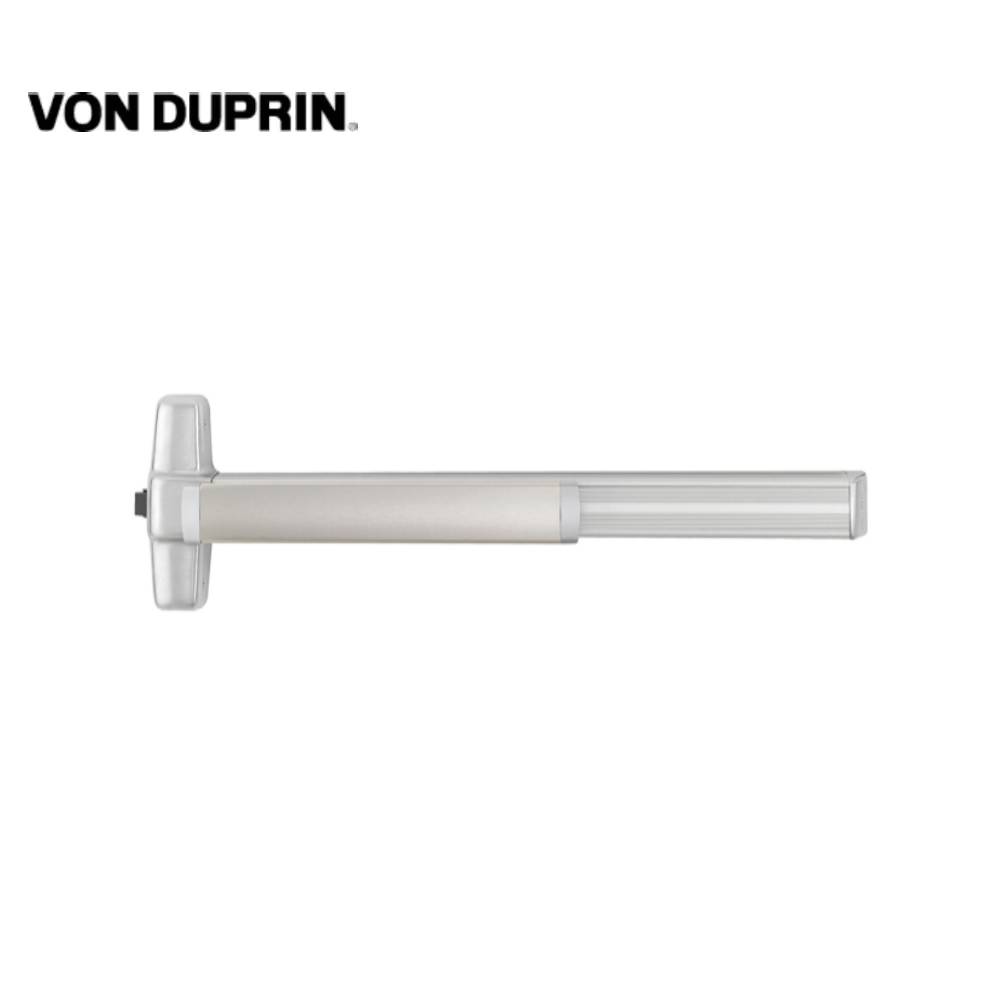

Von Duprin – QEL99EO – Rim Exit Bar – Wide Stile Pushpad – 36 – Less Trim – Motorized Latch Retraction – 626 (Satin Chrome Finish)

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).

Feature:

• Device functions: Device ships EO DT NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3 2 4 to 3 (711mm to 914 mm) Door size 4 2 10 to 4 (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13 16 (1011 mm) 39 11 16 (1008 mm) with mullion
• Center case dimensions: 8 x 2 3 4 x2 3 8 (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1 4 x 2 1 4 (57mm x 57mm)
• Projection: Pushbar neutral – 3 13 16 (97 mm) Pushbar depressed – 3 1 16 (78 mm)
• Latch bolt: Deadlocking, 3 4 (19mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3 4 (44mm) and 2 1 4 (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.

• Product Specifications:

  Vendor		Allegion
  Manufacturer		Von Duprin
  SKU		QEL99EO 3 26D
  UID		VON100QEL99EO326D
  Grade		Grade 1
  Installation		Commercial
  Origin		USA
  Unit of Measure		Each
  UL Listing Type		UL 305
  ANSI Number		A156.3
  Restrictions		None
  BAA Qualified		Yes

  Technical Specifications:

  Physical Appearance		Wide Stile Pushpad
  Device Type		Rim
  Mechanical Function		Exit Only, Accepts Various Trim
  Device Length		36
  Hand		Non-handed
  Electric Options		Motorized Latch Retraction
  Dogging Options		Less Dogging
  Trim Type		Less Trim
  Trim Design		Less Trim
  Cylinder Type		Non-Keyed
  Minimum Stile Size		3-5 8
  Door Material		Metal or Wood
  Door Width		28 – 36
  Door Thickness		1-3 4 – 2-1 4
  Product Type		Rim Exit Devices
