Description

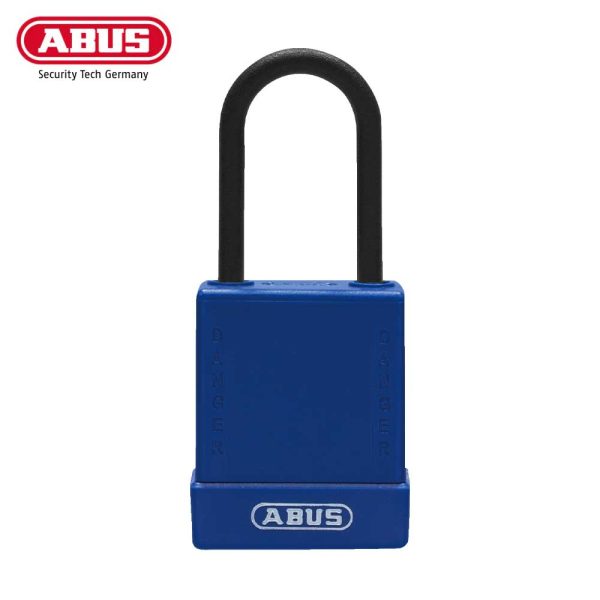

ABUS – 76PS 40 – Nylon-Covered Aluminum Core Padlock – KD – 1 1 2 Shackle with Optional Finish

The ABUS 76 Series is the first safety padlock to offer more than 200,000 true key differs with its 8-pin cylinder. The protected keyway eliminates cross-keying and reduces risk of employee injury, company liability and code violations. Available in a variety of colors and shackle options.

Technologies:

• Body and shackle insulated
• Solid aluminum core: Lightweight and durable
• Precision 8-pin cylinder for the very high number of 150,000 guaranteed keyed different bittings
• Large, extremely breaking resistant key with V-shape cuts ensures high precision
• Automatic locking for user convenience
• 9 different shackle options
• One key according to lockout requirement: one worker, one lock, one key
• Key-retaining: Lock retains key until locked

• Use and Application:

  • Safety at work

  • Specifications:

    LOCKING TYPE:		Key
    COLOR:		Red, Blue
    WIDTH:		1 37 64 inch
    VERTICAL CLEARANCE:		1 17 32 inch
    DEPTH:		55 64 inch
    WEIGHT:		0.24 lbs
    SECURITY CARD:		No
    COLOR OF FACETS:		Red, Blue
    HORIZONTAL CLEARANCE:		25 32 inch
    SHACKLE DIAMETER:		13 64 inch
    HEIGHT:		3 1 2 inch
    KEYED ALIKE:		No

    Variants:

    • 2 colors: red, blue
    • Shackle versions in different lengths: steel, sheathed steel, stainless steel or non-conductive plastic
    • Cable versions with flexible wire instead of rigid shackle: stainless steel cable with plastic coating, 8 inches or 16 inches long
    • Available keyed alike
    • Integration into key systems possible

    • Download

      • Technical Data Sheet

      • Item #: 76PS 40- 84807, 84810

        Additional information

    Color	Red, Blue
