Description

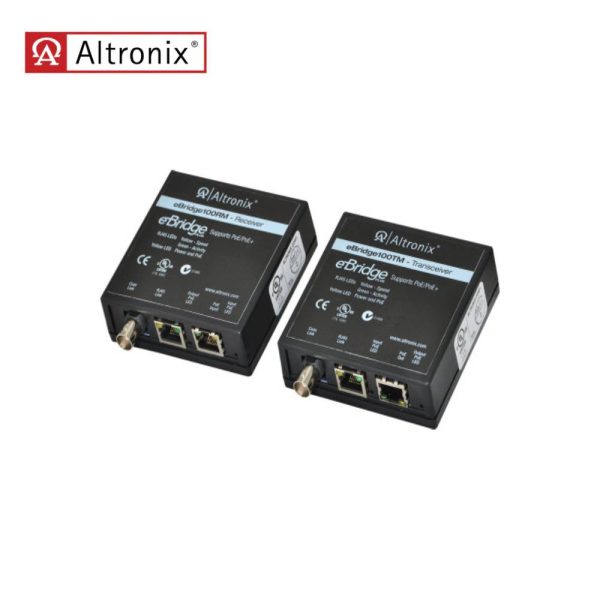

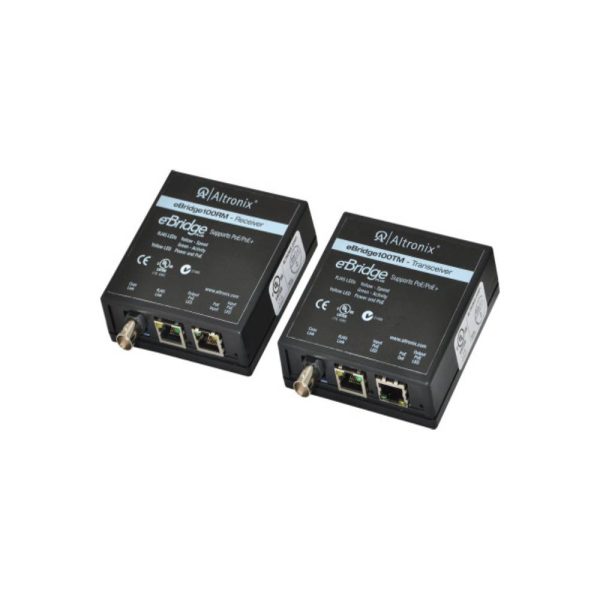

Altronix – EBRIDGE-100RMT – Ethernet Over Coax Cat5e Adapters kit with Powered by Midspan or Endspan and Throughput is Rated to Pass 100mbps of Data

eBridge100RMT Ethernet over Coax CAT5e Adapter Kits transmit full duplex data at 100Mbps and pass PoE compliant power over coax 304m, or CAT5e cable up to 500m without repeaters. The adapter kit consists of an eBridge100RM receiver and an eBridge100TM transceiver. These adapters, along with the connected IP camera or edge device, is powered by virtually any midspan or endspan.

Features:

• Powered by midspan or endspan.
• PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5e cable.
• Speed: 10 100BaseT, half full duplex, auto negotiation.
• PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
• The eBridge100RM receiver passes power over Coax CAT5e cable to the eBridge100TM transceiver which in turn passes this power to an enabled IP Camera edge device.
• Throughput is rated to pass 100Mbps of data.
• Yellow – PoE ON (by respective RJ45 jack).
• Yellow and Green LED (RJ45) IP Link status, 10 100Base-T active.
• Auto detection and protection of legacy non-PoE cameras devices.

• Product Specifications:

  Vendor		Altronix Corporation
  Manufacturer		Altronix
  SKU		EBRIDGE100RMT
  UID		ALT100EBRIDGE100RMT
  Installation		Commercial
  Unit of Measure		Each
  Product Type		Power Over Ethernet (POE) Adaptors

  Download:

  • Installation Instructions

  • Additional information

  Title	Default Title
