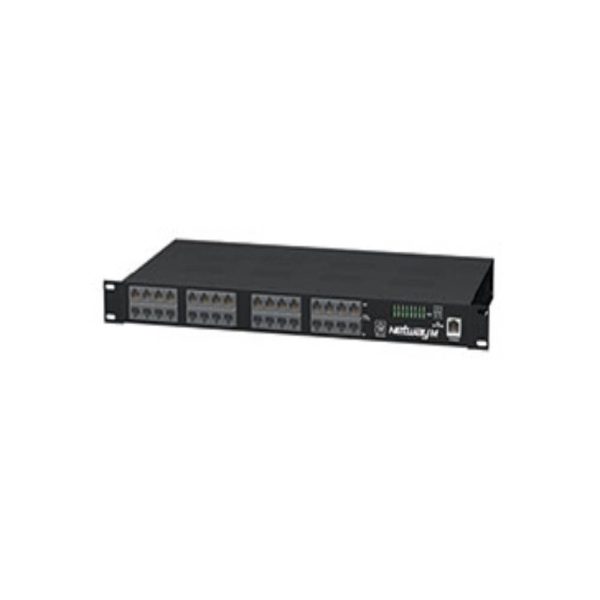

Altronix – NETWAY16M – Power Supply POE Managed Midspan Injector 16 Port

Altronix NetWay16M Managed Midspans provide power and pass data for PoE compliant cameras edge devices. Cameras edge devices may be located up to 100m from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on camera device port requirement. NetWay Managed Midspans are capable of supporting non-PoE compliant fixed and PTZ IP cameras utilizing NetWay1512 or NetWay3012 adapters.

Features:

• 115VAC 60Hz at 4.9A Input.
• Sixteen (16) ports of cameras edge devices over ethernet (CAT5) cable up to a distance of 100m per port.
• Unit provides up to 30W max. full power per port.
• Total power: 300W.
• IEEE 802.3af (PoE) and IEEE 802.3at (PoE +) compliant.
• Short circuit protection.
• Programmable PoE shutdown for each port. Utilized to reset cameras edge devices.
• Auto detection and protection of legacy non-PoE cameras edge devices.
• LAN or laptop connection enables programming of PoE shutdown and port monitoring.
• User interface.
• Illuminated master power disconnect circuit breaker with manual reset (switch).
• Individual port status LEDs.
• IEC 320 – 3-wire grounded line cord (detachable).

• Product Specifications:

  Vendor		Altronix Corporation
  Manufacturer		Altronix
  SKU		NETWAY16M
  UID		ALT100NETWAY16M
  Installation		Commercial
  Unit of Measure		Each
  Purpose		Power Over Ethernet (POE)
  Product Type		Power Over Ethernet (POE) Adaptors

  Download:

  • Installation Instructions

  • Additional information
