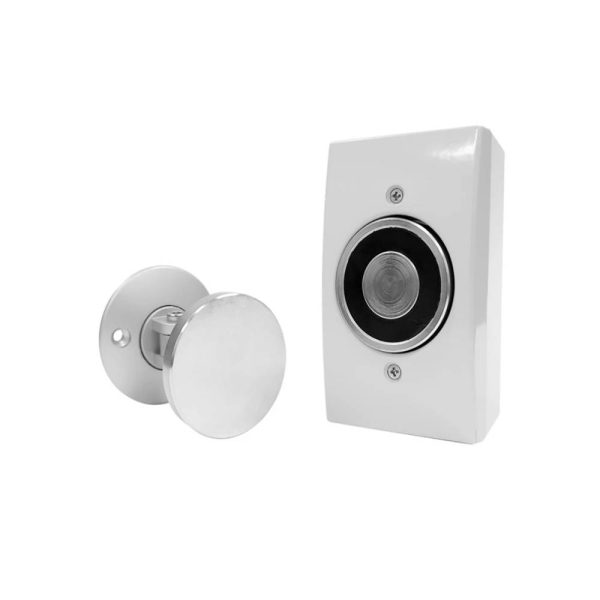

Camden – CX-95S-DH – Magnetic Door Holder Flush Surface Mount

Camden CX-95S-DH Magnetic Door Holder is designed for virtually any remote door release application. The UL-listed Magnetic Door Holder controls the release and closing of commercial and public area doors, ideal for use in apartment buildings, schools, hotels, hospitals, and offices.

Fail-safe operation, tri-volt coils, and an adjustable armature plate allow for easy and flexible installation. Camden Magnetic Door Holders may be surface or flush mounted, with all mounting hardware included in the kit. Optional extension bars are also available.

Features:

• Multiple voltages: 12 24V, AC DC, 120 VAC
• Armature plate adjusts to door alignment
• Surface or flush mounting options
• Up to 35 lbs (16 kg) holding force
• Used for door release in public, industrial and commercial applications
• 3 & 7 extension bars available

• Specification:

  Voltage		12 24V AC DC, 120V AC
  Current Draw		55mA @ 12V AC 57mA @ 12V DC, 32mA @ 24V AC 34mA @ 24V DC, 30mA @ 120V AC
  Mount Options		Surface or Flush Mount
  Dimensions		Surface Mount Magnet: 2-3 4 W x 4-5 8 L x 2-1 2 D (70mm x 116mm x 62mm) Flush Mount Magnet: 2-3 4 W x 4-5 8 L x 1-3 4 D (70mm x 116mm x 44mm) Armature Plate: 2-9 16 W x 2-9 16 L x 2-7 8 D (65mm x 65mm x 74mm)

  Download:

  • Maglock Door Holder
  • Maglock Door Holder FR
