Description

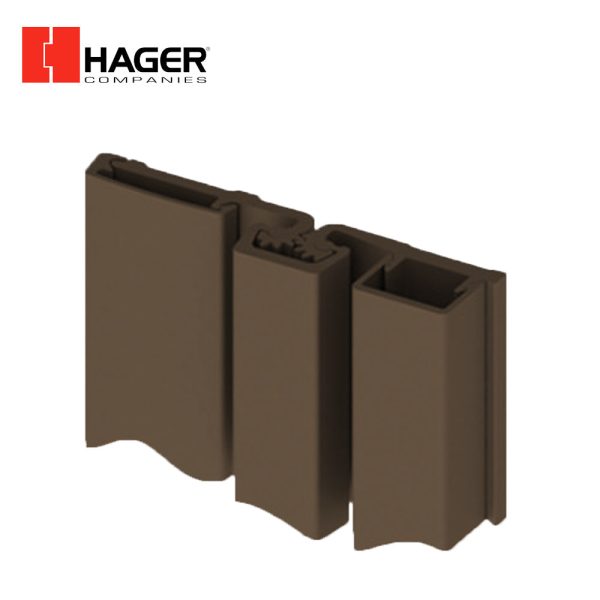

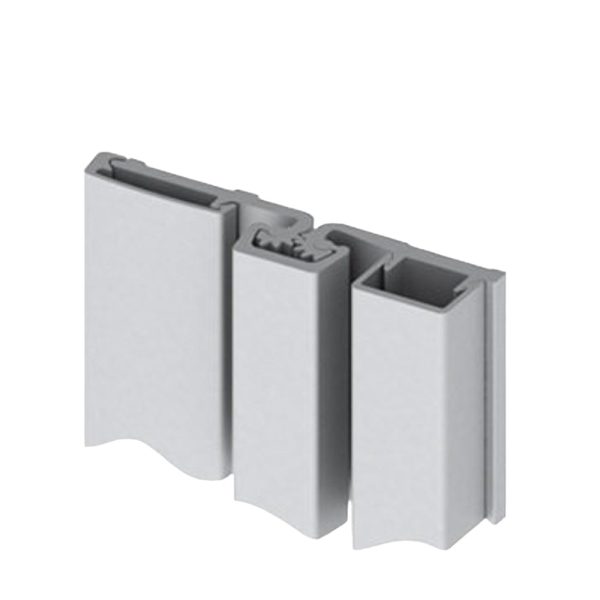

HAGER – 780-157 – Full Surface Contonous Hinges

Product Specifications:

Applications:

• For center hung and double egress conversions;
• Security molding
• 1 16 (1.5 mm) inset.

• Clearance:

  • 1 32 (1 mm) minimum recommended for hinge side.
  • Plus standard lockside clearance.

  • Electric Modifications: RETW available

    Fasteners:

    • Standard: 1 4-20 x 1-1 4 Sexbolt (fastener + Post)
    • Standard: Dril-Kwik® – #12-24 X 11 16 Flat Head Screws
    • Additional Options Available upon request.

    • Features:

      • Standard duty for medium frequency doors. Heavy duty for high frequency doors or heavy, medium frequency doors
      • For center hung and double egress conversions
      • Security molding
      • 1 16” (1.5 mm) inset.

      • Finishes: CLR, DBZ, BLK

        Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs);

        Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

        Length: 79 , 83 , 95

        Material: Aluminum 6063-T6

        Notes:

        • EPD: Roton Continuous Hinges Environmental Product Declaration

        • Options: Hospital Tip

          Product Description:

          • Full Surface
          • Frame Face Dimension
          • Limitations

          • Download:

            • Installation Instructions
            • Roton Electrical Modifications
