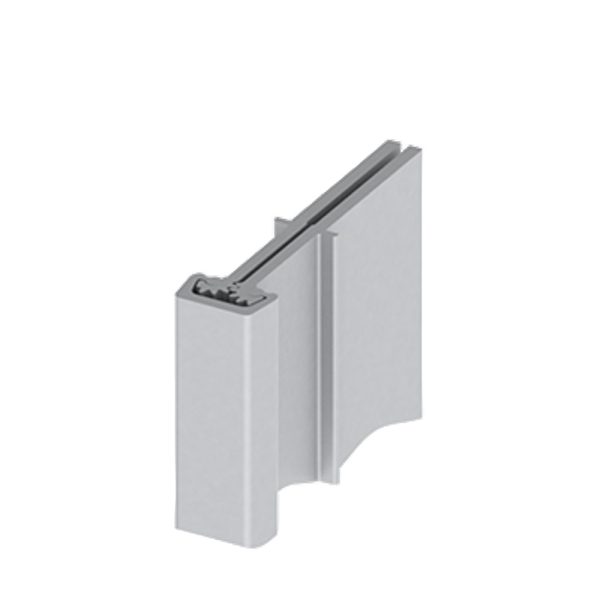

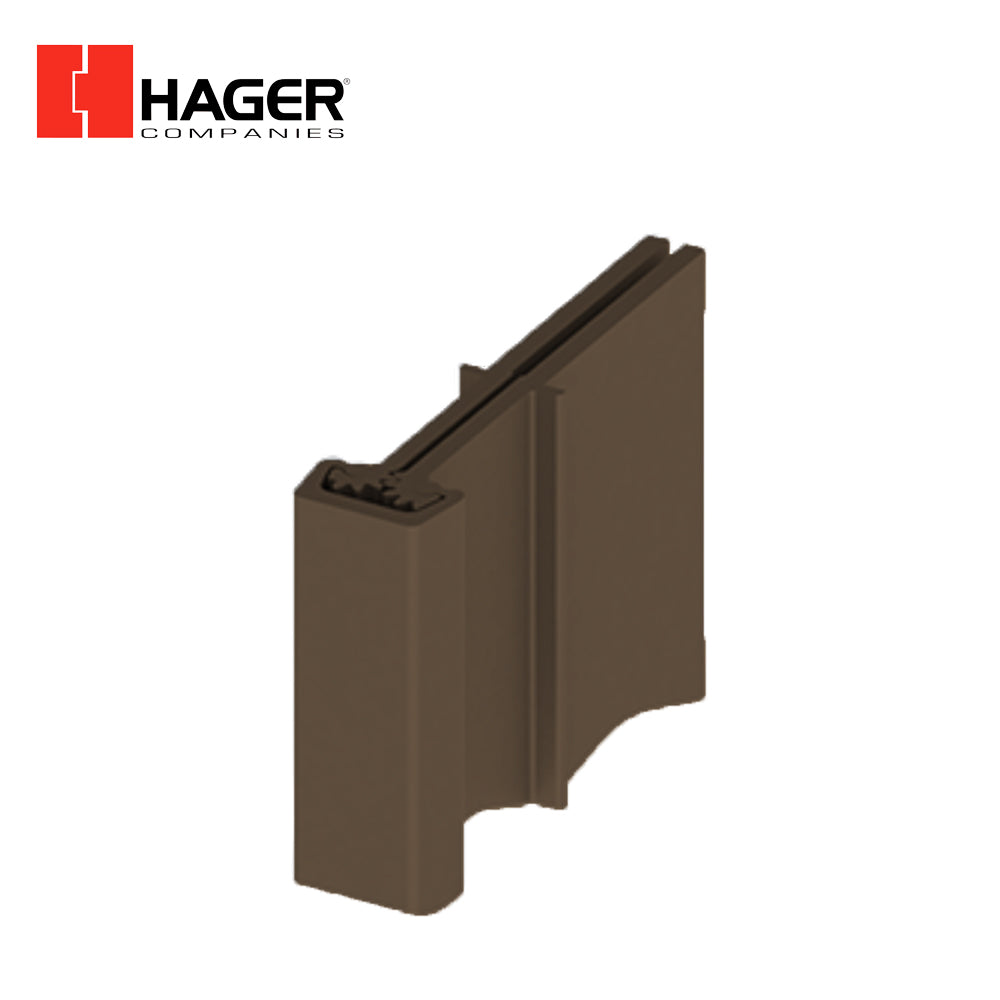

HAGER – 780-235HD – Heavy Duty Concealed Leaf Continuous Geared Hinge

HAGER hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge applicatios.

• ANSI BHMA A156.26 C
• Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards

• Product Specifications:

  Applications:

  • Wide Throw for applications that require extra clearance for door or frame
  • Frame and door leaf alignment ribs for proper hinge and door location
  • For square edged doors on hinge side

  • Clearance:

    • 5 16” (8 mm) hinge side plus allow an additional 1 32” to the standard lockside clearance

    • Door Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

      Fasteners:

      • Standard: Dril-Kwik® – #12-24 X 11 16 Flat Head Screws
      • Optional: 1 2 Dril-Kwik® Screws, 1 2 wood Screws
      • Additional Options Available upon request.

      • Features:

        • Heavy duty for high frequency doors or heavy, medium frequency doors. All for doors 2” (51 mm) thick or greater.
        • Wide Throw for applications that require extra clearance for door or frame
        • For square edged doors on hinge side
        • Frame and door leaf alignment ribs for proper hinge and door location.

        • Finishes: CLR, DBZ, BLK;

          Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs);

          Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

          Length: 83 , 95

          Material: Aluminum 6063-T6

          Notes:

          • EPD: Roton Continuous Hinges Environmental Product Declaration

          • Options:

            • Hospital Tip
            • TIPIT® (see Roton accessories)

            • Product Description:

              • Concealed Leaf
              • Heavy Duty
              • Wide Throw
