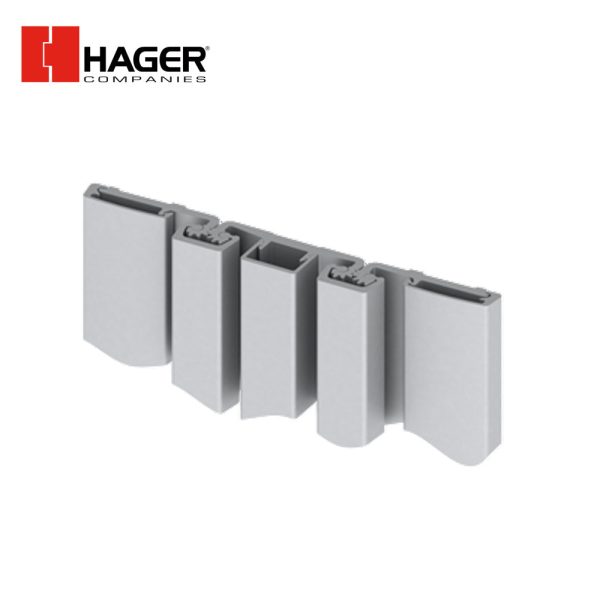

HAGER – 780-257HD – Heavy Duty Full Surface Continuous Geared Hinge

HAGER hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge applicatios.

• ANSI BHMA A156.26 C
• Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards<

• Product Specifiations:

  Applications:

  • Double hinge for hanging two entrance doors from a fixed mullion
  • Security moldings.
  • 1 16 (1.5 mm) inset

  • Clearance:

    • 1 32 (1mm) minimum recommended between mullion and door, plus standard lockside clearance – 1-1 2 (38mm) to 2-1 4 (57mm) mullion width;
    • 1-5 8 (41 mm) minimum frame face required plus 3 16 (5 mm) rotational clearance

    • Door Reinforcement: None required.

      Fasteners:

      • Standard: 1 4-20 x 1-1 4 Sexbolt (fastener + Post)
      • Standard: Dril-Kwik® – #12-24 X 11 16 Flat Head Screws
      • Additional Options Available upon request.

      • Features:

        • Heavy duty for high frequency doors or heavy, medium frequency doors
        • Double hinge for hanging two entrance doors from a fixed mullion
        • Security moldings.
        • 1 16” (1.5 mm) inset

        • Finishes: CLR, DBZ, BLK

          Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs);

          Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

          Length: 79 , 83 , 85 , 95 , 119

          Material: Aluminum 6063-T6

          Notes:

          • EPD: Roton Continuous Hinges Environmental Product Declaration

          • Product Description:

            • Full Surface
            • Heavy Duty
            • Double hinge for hanging two doors from a fixed mullion.

            • Download:

              • Installation Instructions
              • Roton Electrical Modifications
