Description

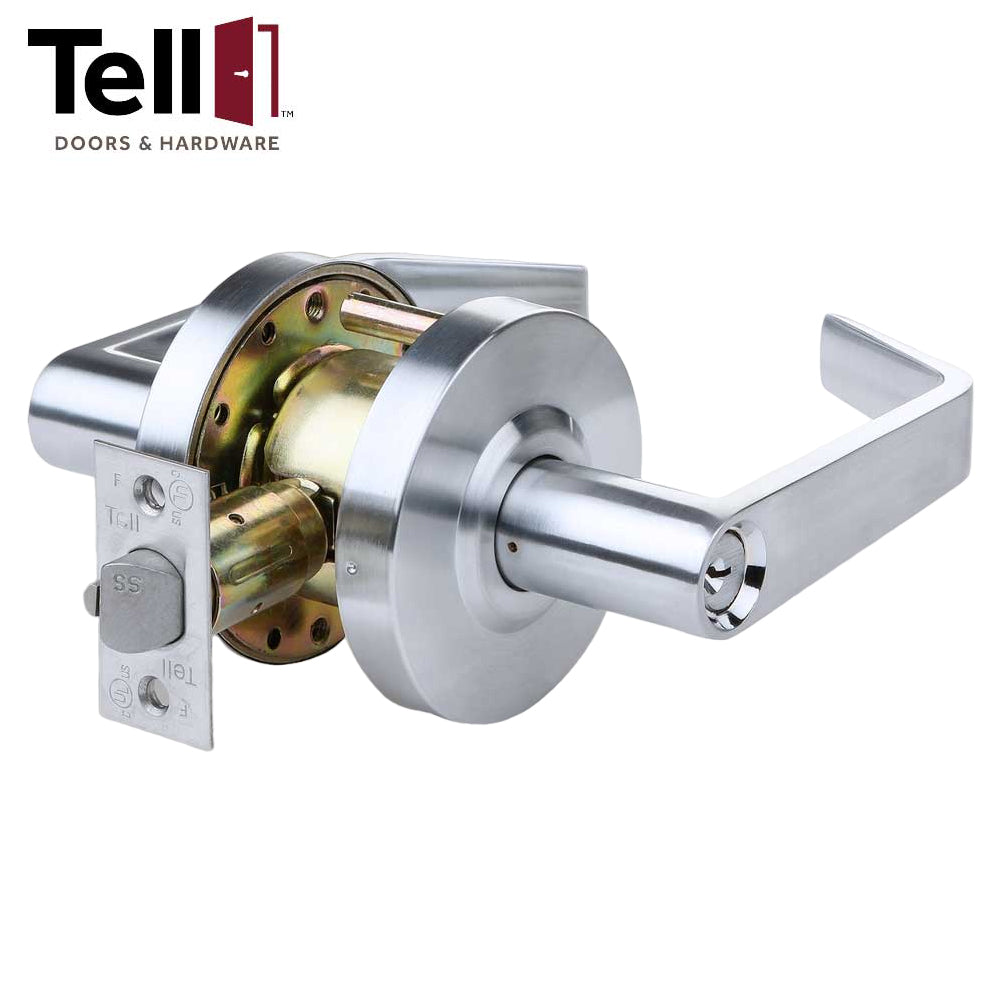

TELL LC2475 Cortland Lever (CTL) Heavy Duty Cylindrical Leverset – Passage Hall Closet (75) – 2-3 4 Backset – Grade 2 – Optional Finish

The LC2400 Series Lever is a grade 2 cylindrical, heavy-duty lever in a satin stainless steel finish that can be used for entry, storeroom, privacy, and or passage. These levers can be used in new construction or replacement hardware fitting a standard 161 door prep. Other functions and finishes available.

Specifications:

Performance		Grade 2 heavy duty 400,000 cycles
Compliance		UL ULC listed for 3-hour fire door American Disabilities Act (ADA) ANSI A117.1 ANSI A156.2, Series 400
Chassis		Cylindrical Steel – corrosion resistance
Handle		Lever, non-handed Styles: Cortland
Latch		2-3 4 Backset 1 Housing diameter 1 2 Stainless steel throw 1-1 8 x 2-1 4 , Square corner faceplate
Strike		ASA Strike 1-1 4 x 4-7 8 Optional T-Strike 1-1 8 x 2-3 4 Optional F-Strike (full lip)
Rose		3-1 2 diameter
Cylinder		SCC Standard, C keyway 6-pin solid brass Keyed different (KD)
Keys		Two nickel silver per lock cylinder
Door Preparation		1 Diameter for latchbolt Fits standard 161 door prep
Door Range		1-3 8 – 2 2-1 8 Diameter for lever
Warranty		Lifetime limited

Notes:

• Locks furnished keyed different (KD) with Schlage C (SCC) keyway unless specified.
• Other keyways available no charge: Arrow AR1, Corbin 60 L4, Falcon Weiser, Kwikset, Russwin D1, Sargent LA RA, Yale 8.

• Download:

  • Specification
  • Installation Instruction

  • Additional information

Color	Satin Chrome (US26D), Oil Rubbed Bronze (US10B), Polished Brass (US3)
