Description

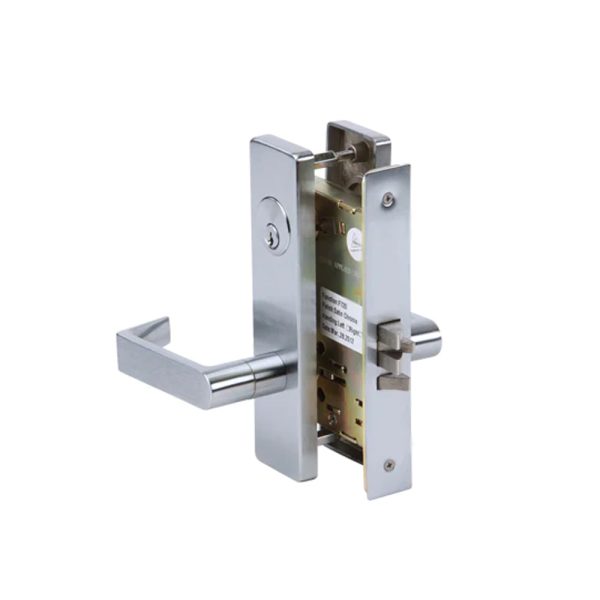

TELL ML138607 Heavy Duty Mortise Lock – Satin Chrome (US26D) – 2-3 4 Backset – Grade 1 – Storeroom

ML1300 Series Grade-1 Heavy Duty Mortise Locks are built to withstand high-traffic applications for extra strength security. With a variety of functions, trims and finishes, ML1300 lock is durable making it perfect use for schools, hotels, office buildings, retail stores and many other high traffic applications.

Specification:

Performance		Grade 1 heavy duty 1,000,000 cycles
Function		M713 Function
Compliance		American Disabilities Act (ADA) ANSI A117.1 Complies with ANSI A156.13, Series 100
Chassis		Mortise Steel – coated with zinc dichromate (corrosion resistance) 13 gauge cold rolled steel
Trim		Escutcheon Lever Non-handed, field reversible Solid forged brass
Latch		2-3 4” Backset Latch 3 4” throw Deadbolt 1” stainless steel throw Anti-friction
Strike		4-7 8” curved strike Optional straight lip (stainless steel)
Cylinder		Schlage (SCC) – C keyway 6-pin solid brass Keyed different (KD)
Keys		Two nickel silver per lock cylinder
Door Preparation		Per function and template
Warranty		Lifetime limited

Download:

• Specification
• Installation Instruction

• Additional information
