Description

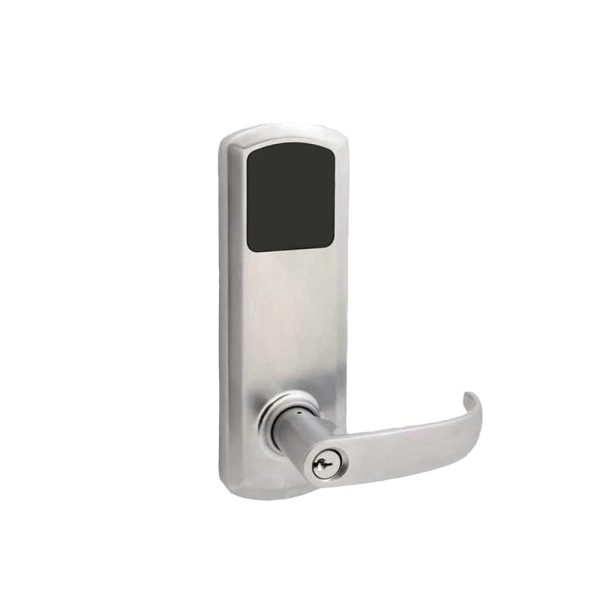

TownSteel – e-Genius – 5000 Series Electronic Interconnect Touch Keypad Lock – Bluetooth – 4 Lockbody with Narrow Faceplate – Schlage C Keyway – Entry Function

The e-Genius 5000BLE (Bluetooth Low Energy) is ideal for rental properties, residential homes, and offices that is manageable through our TSE Home APP . Access your home with keyless freedom and convenience using a highly responsive, 12-pin touch keypad, or RFID keycards stickers, or through TSE Home APP, available in Android and IOS. The 5000BLE series is programmable with up to 450 user codes interchangeable with RFID keycards stickers. A mechanical key to is also provided as an extra backup.

This electronic lock is also the only keyless double lock providing the ability to lock and unlock an interconnected deadlatch and deadbolt with ease. To unlock the door, simply provide valid credentials and push the lever downwards to reentry with single motion. To lock the door, lift lever upwards from either side to extend the deadbolt. The deadlatch will not be retracted when the door is locked for the security.

Feature:

• Illuminated 12-pin touch keypad
• Interconnected deadbolt and deadlatch
• Single motion egress
• Clutched lever design
• Weather resistant design
• Bluetooth Low Energy
• TSE Home APP compatible, available for Android and IOS
• One smart phone only as the administrator (Paired with the lock)
• Code Length: 6-10 digits
• 450 interchangeable user codes and RFID key cards stickers
• Anti-tamper Lockout after 5 invalid tries for 90 seconds
• Low battery warning
• Mechanical key as an extra backup

• Specification:

  Series		e-Genius
  BHMA ANSI Grade		Grade 1 Certified, ANSI BHMA A156.12
  Lockbodies		4″ 5.5″
  Handings		RHR LHR RH LH Field Reversible for KIK cylinder Field Irreversible for IC core
  Backsets		2-3 8″ and 2-3 4″ available
  Electronic Specifications		RX Switch
  Faceplates		Wide Faceplate – 1-1 8” x 2-1 4” Narrow Faceplate1 x 2-1 4
  Door Thickness		1-3 4 1-3 8” with 2 spacers
  Latch bolt		1 2 throw stainless steel deadlocking
  Latch strike		Full lip with radius corners T-Strike with square corner ASA Strike with radius corner
  Deadbolt Strike		1-1 8 x 2-3 4 radius corners with security underplate 1-1 8” x 2-3 4” square corner with security underplate
  Escutcheon		Zinc
  Levers		Quest Sentinel Wolfsburg Wolfsburg R
  Trims		Escutcheon
  Finishes		619- Satin Nickel 622- Flat Black 626- Satin Chrome
  Compliance		Americans with Disabilities Act Compliant UL 10C Compliant CAN ULC S104 Compliant FCC part 15 certified

  Available Keyway:

  • Kwikset® 6-pin with “KW” Keyway
  • High security 6-pin with Townsteel® “L” Keyway
  • High security 7-pin IC core with Townsteel ® “L” Keyway
  • 6-pin IC core with Best® “A” Keyway
  • 7-pin IC core with Best® “A” Keyway
  • Small format IC, SFIC, Less cylinder core option
  • Schlage® LFIC less core
    Corbin LFIC less core

  • Download:

    • 4″ e-Genius Installation Guide Touch Keypad
    • 5.5″ e-Genius Installation Guide Touch Keypad
    • e-Genius 5000BLE Programming Guide

    • Additional information

  Color	Flat Black – 622, Satin Chrome – 626, Satin Nickel – 619
  Handed	Left, Right
  Levers	Quest-Q, Sentinel-S, Wolfsburg-W, WolfsburgR-WR
